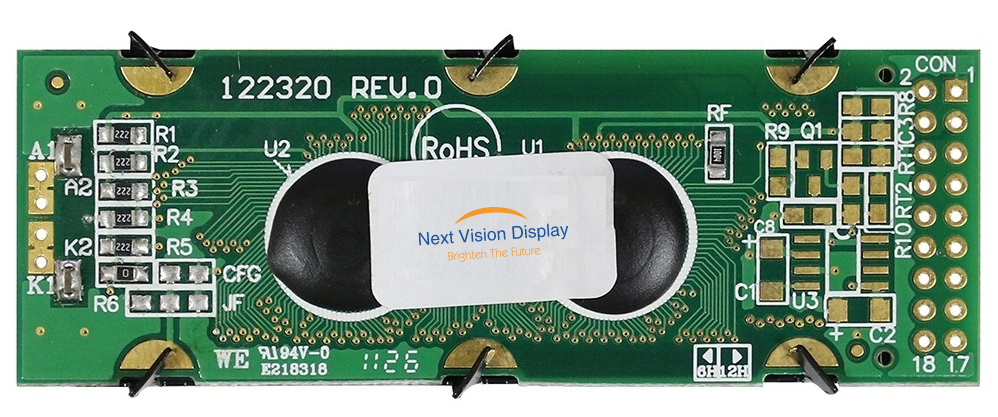

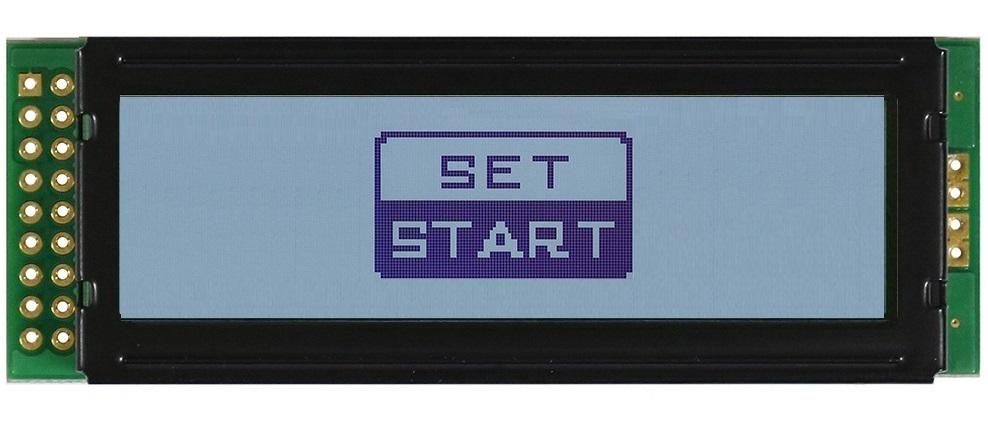

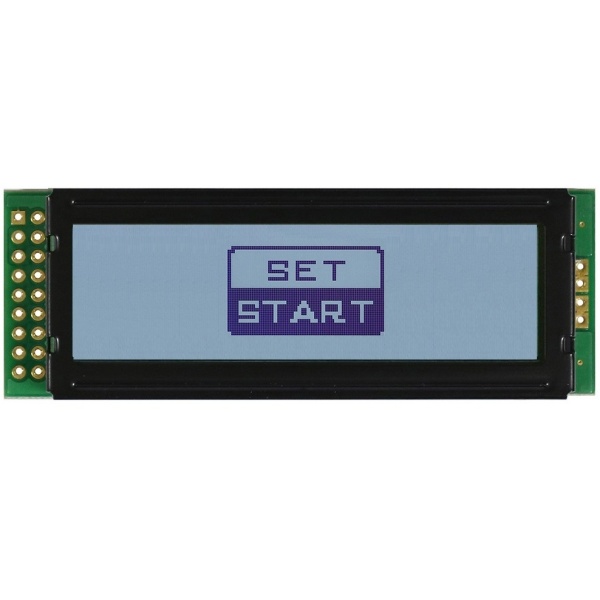

NG12232BN002WS

Graphic LCD 2.2″, 122×32, B/L white, STN gray pos, 6800, COB/SMT, 6H, No touch, Standard Temp.

SKU: NG12232BN002WS Category: MONO LCD DISPLAY

Additional information

Technology	Mono LCD
Size	2.2"
Resolution	122×32
Shape	Rectangular
Constructive Structure	COB/SMT
Color	B/L white, STN gray pos
Polarizer	Transflective
Interface	Parallel(6800)
V(LCD) Onboard	na
View Angle	6H
Operating Temperature (°C)	-20°C + 70°C
Display Connection	Soldering PAD
Touch Panel	None
Frame	No

Description

Downloads

NG12232BN002WS Specs

1 file(s) 792.36 KB

Download

Customization

There are a lot of different options of semi-customization:

– Resolution
– Touch panel and optical films
– Frame
– Connectors

For more information about the technology please contact technical@nextvisiondisplay.com
