NH2004BN001WS

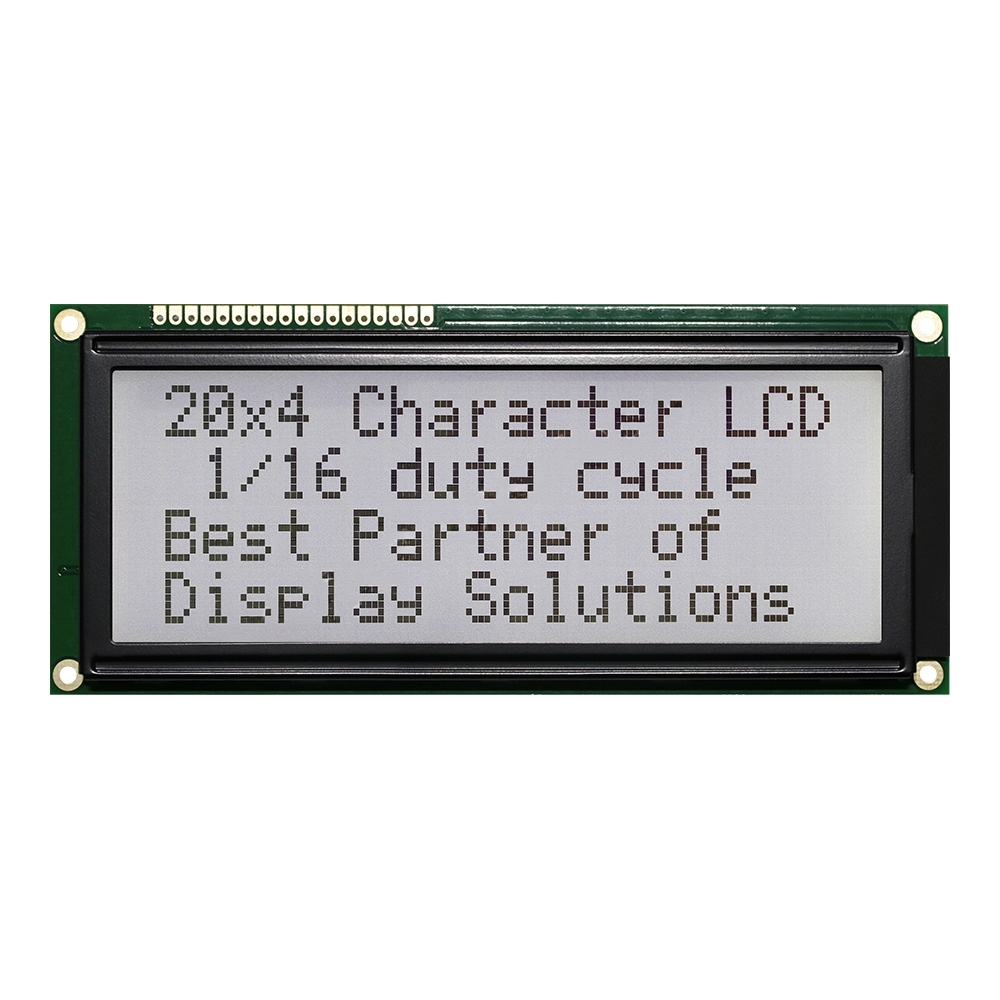

Character LCD 4.92″ 20×4, COB/SMT, B/L white, FSTN white pos, Parallel(6800), 6H, Standard Temp., No Touch, W/ Frame

SKU: NH2004BN001WS Category: MONO LCD DISPLAY

Additional information

Technology	Mono LCD
Size	4.92"
Resolution	20×04
Shape	Rectangular
Constructive Structure	COB/SMT
Color	B/L white, FSTN white pos
Polarizer	Transflective
Interface	Parallel(6800)
V(LCD) Onboard	na
View Angle	6H
Operating Temperature (°C)	-20°C + 70°C
Display Connection	Soldering PAD
Touch Panel	None
Frame	Yes

Description

Downloads

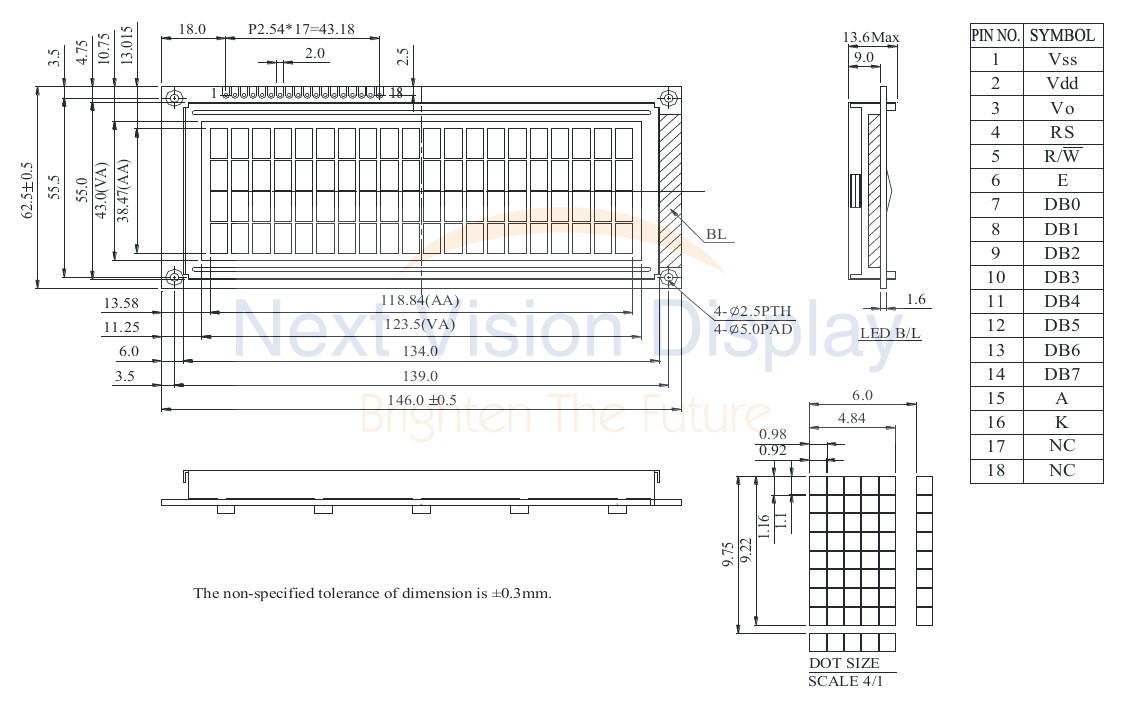

NH2004BN001WS Specs

1 file(s) 1.28 MB

Download

Customization

There are a lot of different options of semi-customization:

– Resolution
– Touch panel and optical films
– Reduction of the TFT letterbox
– Frame
– Connectors
– LED Backlight

For more information about the technology please contact technical@nextvisiondisplay.com
