E-Newsletter Issue No. 85. January, 2023 > Next Vision Display – Wide View TFT Panel

Please look at the following available Wide View IPS TFT Panel.

For more information please send your enquiry to technical@nextvisiondisplay.com

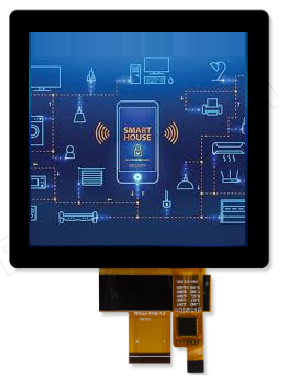

4.0 inch Wide Angle View TFT Panel with PCAP touch

Model No.484801-A

484801-A is a 4.3 inch IPS TFT wide viewing angle LCD module that supports 24 bit TTL RGB interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

► 480×480 resolution
► 24 bit parallel RGB interface
► Projected Capacitive Touch
– I2C Interface
– Multi Touch (Five points)
– 480×480 resolution

Download 484801-A Specs

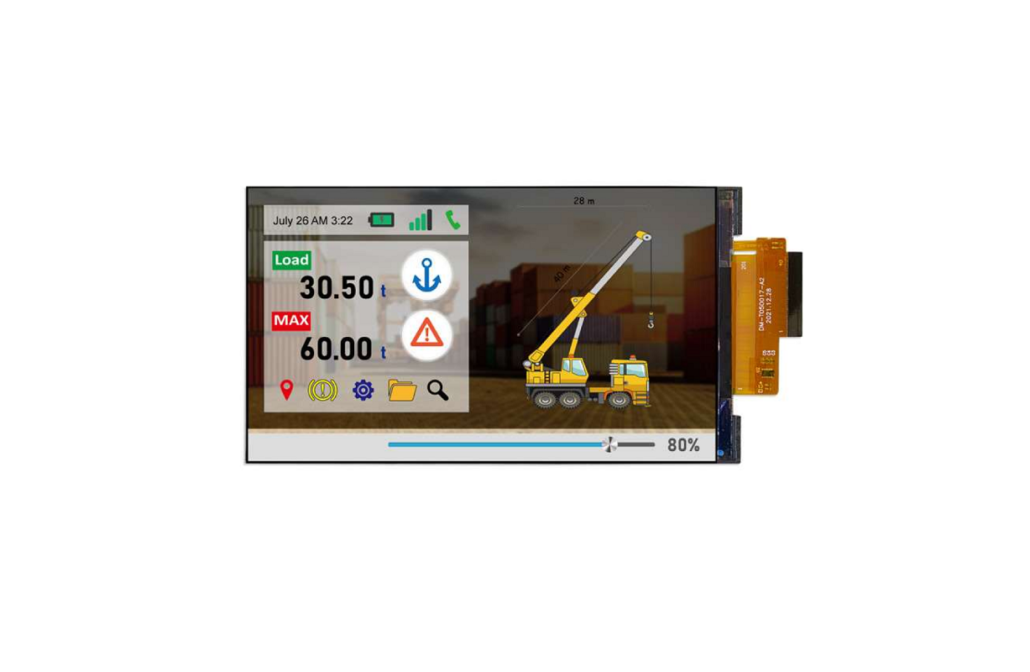

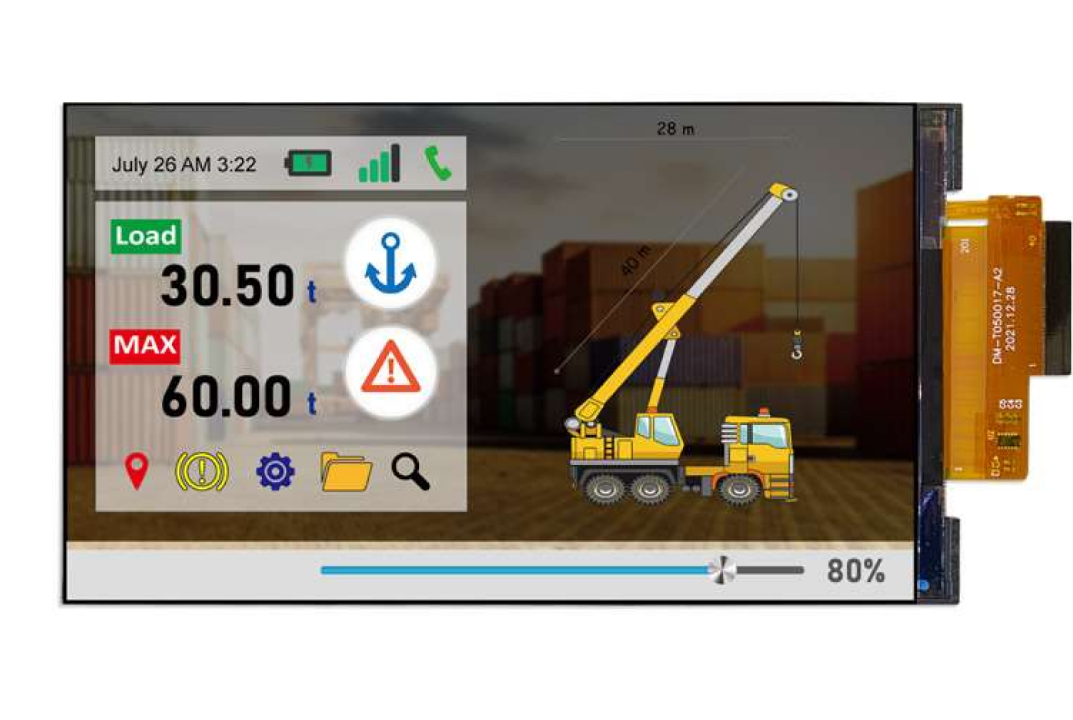

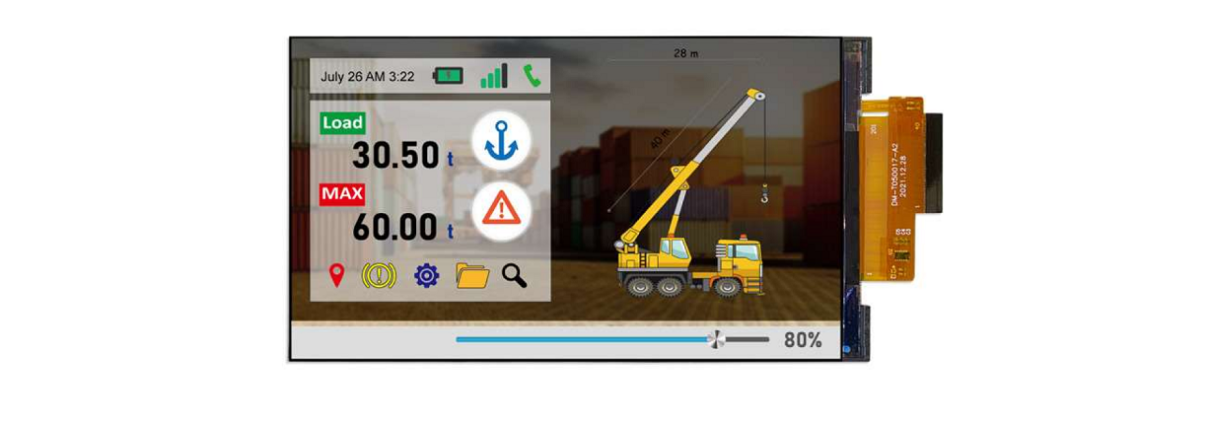

5.0 inch Wide Angle View TFT LCD

Model No.721201-A

721201-A is a 5 inch IPS TFT wide viewing angle LCD module that supports MIPI interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

► 720×1280 pixels resolution.
► MIPI Interface: 4 Data Lanes

download 721201-A Specs
